Description

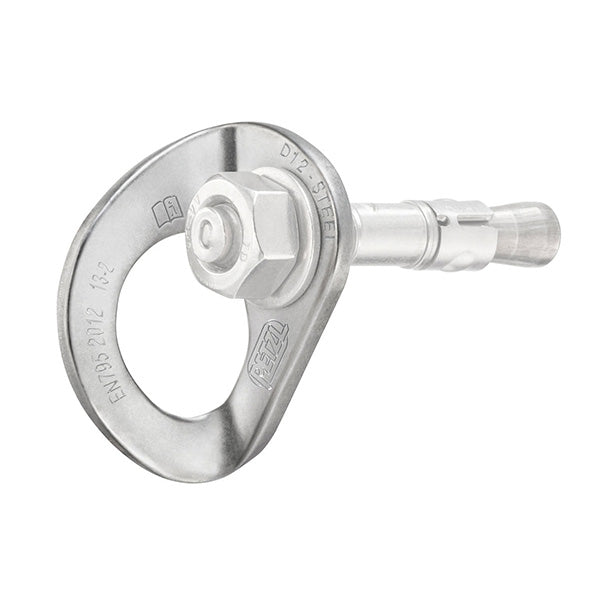

Standard steel bolt and hanger designed for interior use, non-corrosive environments, or non-permanent installations. The 90 degree angle facilitates carabiner attachment, and the wide clipping point will fit two 'biners. The rounded edges of the connection point minimize wear on connectors, and a textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use.
Also available in 10mm diameter, or as the hanger only.
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 85 mm | 105 mm |
| Shear strength in 50 MPa concrete | 23 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
