Description

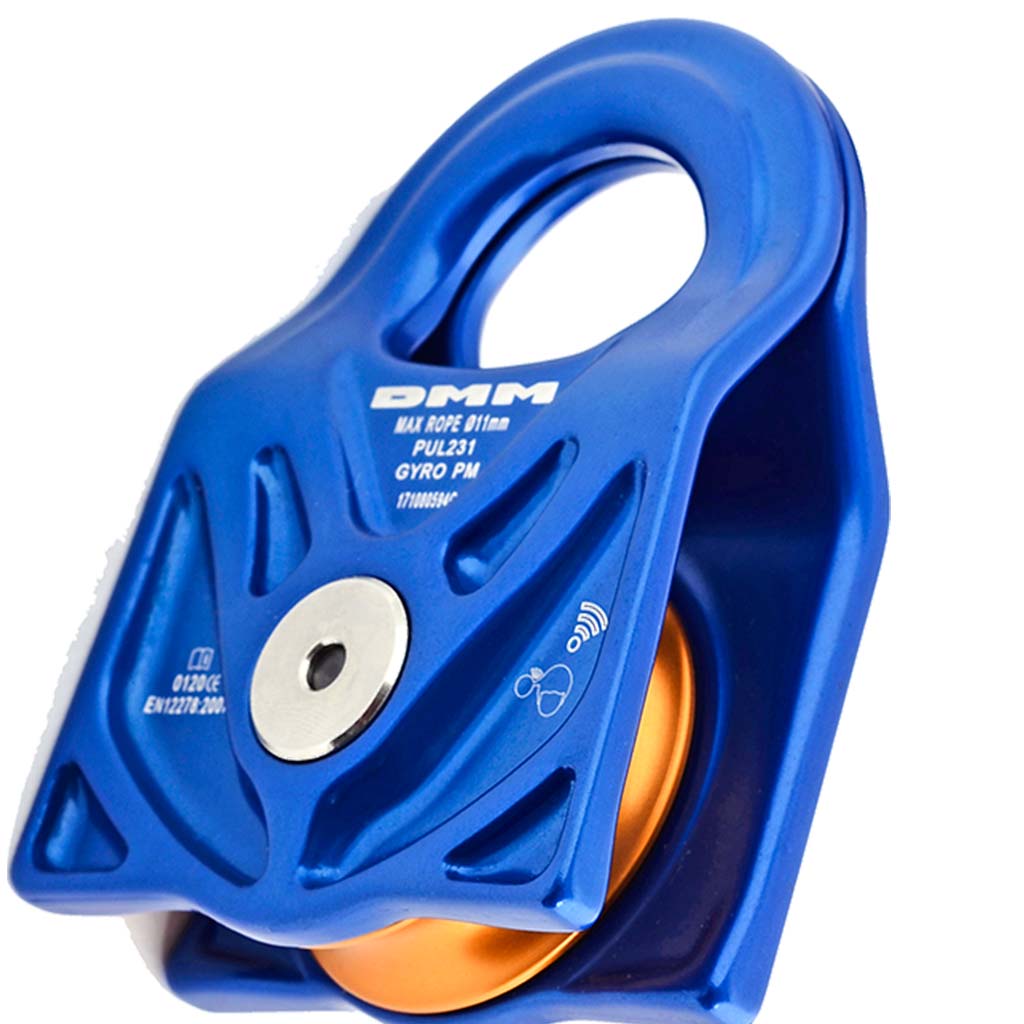

No ordinary pulley this! The DMM Gyro PM has prusik-minding side plates for use in progress capture hauling scenarios, The swing cheeks make it easy to thread ropes up to 13mm, and the high-efficiency sheave offers flawless operation in emergency situations. Each Gyro PM is compatible with DMM's iD equipment management system.
Prusik minding side plates allow progress capture when used in hauling systems
The Gyro Twin and PM's side plates prevents prusiks from entering the pulley body and jamming the sheave. This means they can be used in hauling systems with prusiks that capture rope progress for increased control over loads.
Compact design reduces system height
The Gyro's design minimises system height for efficient and easily managed rigging that is compatible with environments where space is at a premium.
Roller bearings for increased efficiency
Roller bearings are highly efficient, reducing friction and making movement and control of loads easier
Fairlead flares increase efficiency
The pulleys side plates are angled away from the sheave, giving a reduced bend radius and increasing efficiency if the ropes run over them.
Hot forged body reduces wear on ropes
The pulley body is hot forged to reduce the number of edges on the pulley. This reduces the amount of wear ropes experience when they run over the pulley body.
Specifications
- Code: PUL231-ID
- Weight: 234g
- Dimensions: 97 x 70 x 31 mm
- Rope Diameter: 13mm Max
- Certifications: EN12278:2007
- MBS: 50kN
- WLL: 10kN
