Description
The Pulley I Need To Own

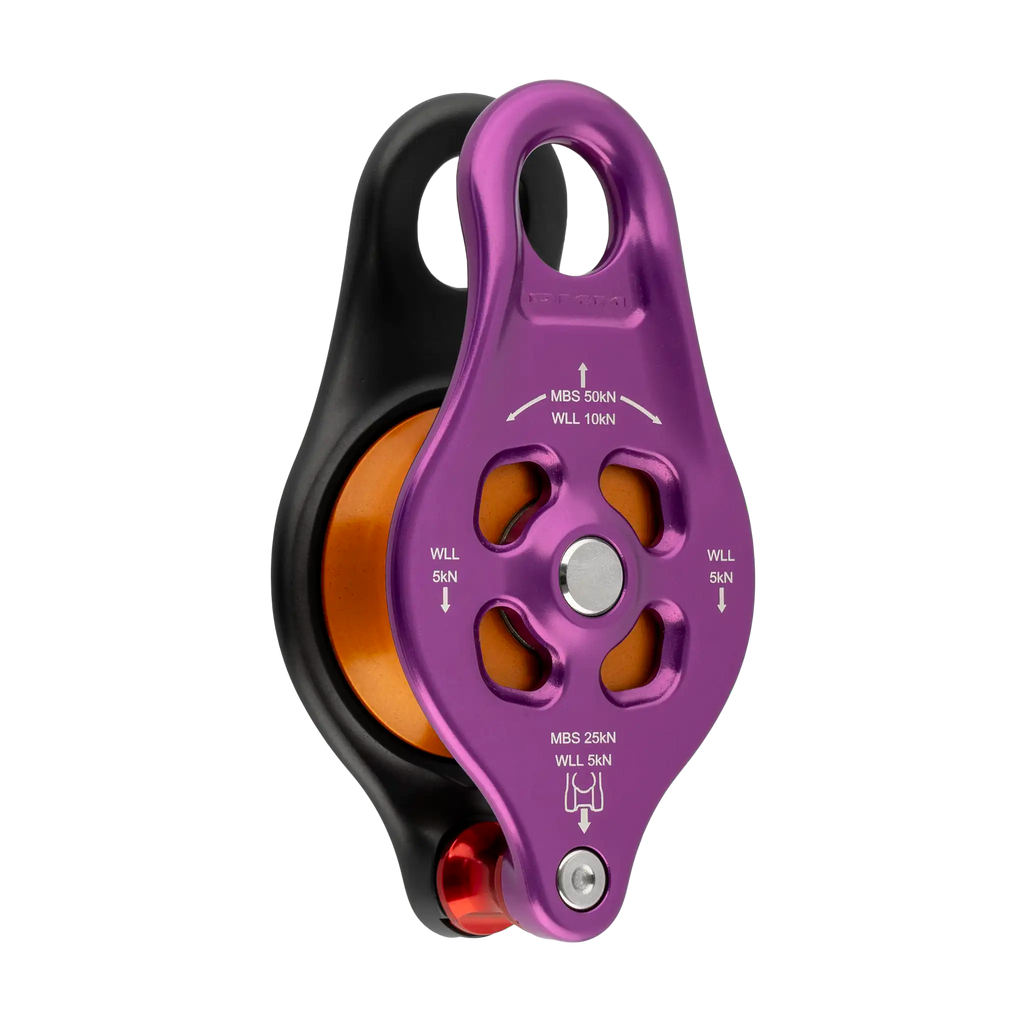

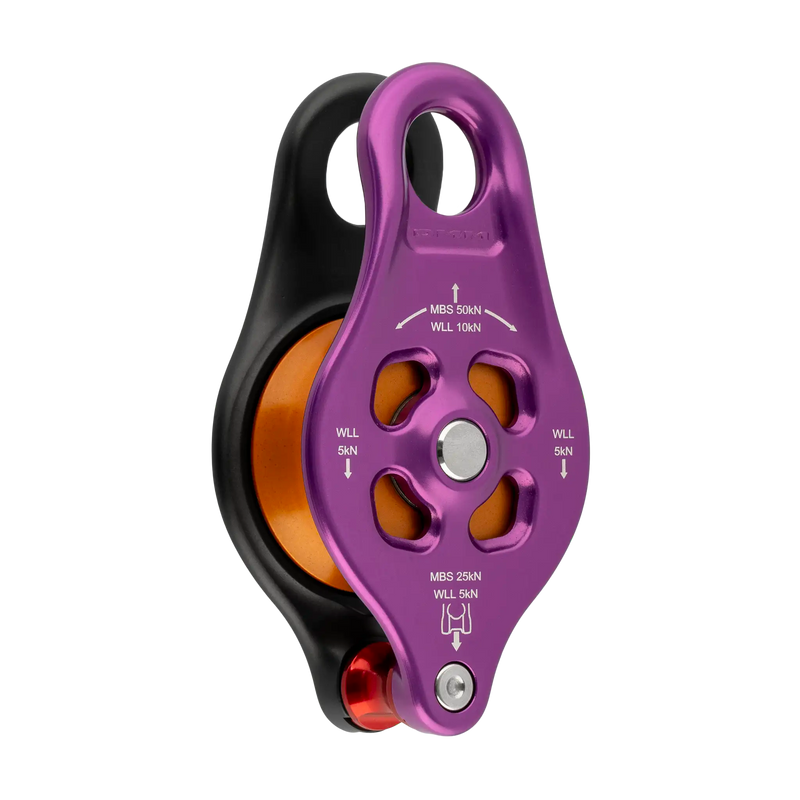

The Pinto (Pulley I Need To Own) is a favorite worldwide, and even the best deserve enhancements—introducing the upgraded Pinto 2 and Pinto Rig 2.
With sleek curves, rope-friendly connections, and a fully rated becket, Pinto pulleys offer exceptional versatility for most moving rope systems.
This is more than just a refresh: we’ve retained the compact, lightweight design of the original Pinto, but now equipped it with high-efficiency ball bearings, improving its performance across the board.
The Pinto Rig 2, now with a larger 38mm sheave to accommodate ropes up to 16mm, has been significantly upgraded in size, making it more effective for rigging applications.
Both the Pinto 2 and Pinto Rig 2 feature a recessed sheave design, ensuring a smooth rope path that prevents snags and keeps your rope or tagline securely on the sheave, even when fed from awkward angles.
FEATURES
- Full strength attachments at eye and becket provide a wide range rigging options
- Fixed sideplate design is easy to clip into and load onto tensioned ropes
- Hot forged and robust, with smooth rope and textile friendly fairleads and edges
- Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
- Recessed sheave design helps rope feed smoothly from all angles
- Sealed ball bearings for high efficiency and low maintenance
- Optional spacer available separately for use with rope connection
- Tamperproof construction
- Made in Wales, and certified for peace of mind
Product Code: PUL141
MBS: 50kN (25KN Becket)
WLL: 10kN (5kN Becket)
Dimensions: 115 x 60 x 37mm
Weight: 222g
Rope Diameter: 16mm Max
Certification: EN12278:2007
